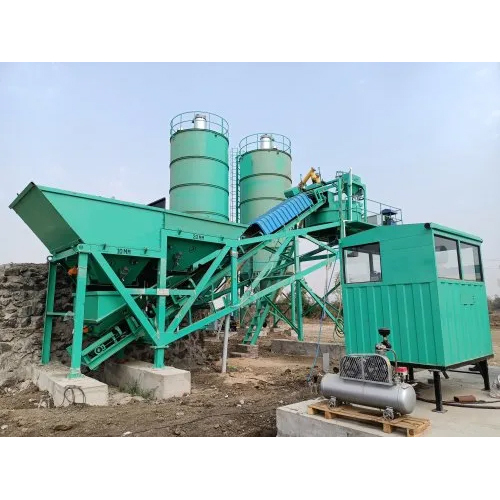

Compact Electical High-performance Advanced Concrete Batching Plant

Send Inquiry

Request To Call Back

Compact Electical High-performance Advanced Concrete Batching Plant

Name: Compact Electical High-performance Advanced Concrete Batching Plant
Brand: PATEL INFRA TECHNOLOGY
Price: 2400000 INR
Availability: InStock

Price 2400000 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Compact Electical High-performance Advanced Concrete Batching Plant Specification

Product Type
Compact Electrical High-performance Advanced Concrete Batching Plant

General Use
Industrial

Material
Stainless Steel

Type
Compact, stationary, automatic batching plant

Weight (kg)
Approx. 14500

Computerized
Yes

Automatic
Yes

Control System
PLC based automatic control panel

Power Source
Electric

Power Consumption
37-45 kW (varies by model)

Storage Capacity
2x50 tons (silo)

Hopper Capacity
1 m3 to 1.5 m3 (customizable)

Hopper Quantity
2 to 4 (modular)

Conveyor Capacity
60-80 tons/hour

Mixing Drum Speed
20-25 rpm

Discharging Height
3800 mm

Voltage
380V/440V, 50/60 Hz

Dimension (L*W*H)
Approx. 12000 mm x 4300 mm x 9100 mm

Feature
High-performance, fully automated, compact design, low maintenance

Color
Industrial Green (customizable)

Plant Output/Capacity
30 m3/hr to 90 m3/hr (model dependent)

Service Access
Maintenance walkways & access ladders

Admixture System
Integrated additive metering pump

Mobility
Semi-portable/module based for ease of installation

Operating Temperature Range
-10C to +50C

Aggregate Batching System
Load cell based, precise weighing

Cement Feeding System
Screw conveyor

Dust Collection System
Bag filter/centralized dust collection system (optional)

Aggregate Belt Type
Inclined conveyor belt with safety covers

Mixer Type
Twin shaft compulsory mixer or planetary mixer (as required)

Safety Features
Emergency stop, overload protection, safety guards, alarms

Water System
Automated water dosing with digital display

Data Logging
Batch production report and remote monitoring capability (optional)

Compact Electical High-performance Advanced Concrete Batching Plant Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Compact Electical High-performance Advanced Concrete Batching Plant

Experience an astonishing leap in construction efficiency with the Patel Compact Electrical High-performance Advanced Concrete Batching Plant. This must-have solution offers model-dependent output from 30 to 90 m3/hr, making it a sought-after choice for versatile projects. With outstanding twin shaft or planetary mixers, precise load cell batching, and a PLC-based control system, the plant ensures top-quality blends. Its semi-portable, modular design allows affordable installation, while integrated safety and low-maintenance features deliver remarkable value-meeting demands from local and export markets across various industrial applications.

Advantage & Usage: Advanced Concrete Batching Plant

This high-performance batching plant offers outstanding reliability and precision for both small-scale urban and large industrial projects. Designed for automatic operation, its compact structure and stainless steel construction ensure durability in any setting. With advanced mixer options and automated water dosing, operators enjoy seamless, efficient batching every time. Suitable for continuous, heavy-duty usage, this plant is the ideal choice for construction companies seeking to boost productivity and quality without sacrificing safety or convenience.

Packaging, Delivery & Markets: Reliable Supply and Export

Every batching plant is securely packaged for safe outlay and swift handover, ensuring a smooth setup on arrival. With robust supply ability, Patel exports these units to international markets while maintaining dependable distribution domestically. The main domestic market covers all major industrial hubs in India, supporting infrastructure growth with excellent after-sales support. This flexibility makes the batching plant a preferred choice for export-oriented companies and industrial contractors seeking an efficient investment.

Specification

Weight	12000kg
Brand/Make	Patel
Water Feeding System	Fully Automatic
Material	Mild Steel
Automation Grade	Automatic
Air Compressor	2 Hp
Capacity	20 cum/hr
Model Name/Number	PICP 20

FAQ's of Compact Electical High-performance Advanced Concrete Batching Plant:

Q: How does the automatic control system benefit batching operations?

A: The PLC-based automatic control panel ensures consistent quality, automates repetitive processes, minimizes manual errors, and increases overall efficiency in concrete production operations.

Q: What mixers are available with this batching plant?

A: Depending on project needs, you can choose between a twin shaft compulsory mixer or a planetary mixer, both delivering homogeneous mixtures and efficient throughput speeds.

Q: Where can this compact batching plant be installed?

A: Thanks to its modular, semi-portable design, the batching plant can be quickly set up at construction sites, industrial zones, or any location with suitable electric power supply.

Q: What is the process for batch production logging and remote monitoring?

A: The plant offers optional data logging and remote monitoring features, enabling users to track batch production reports and remotely supervise operational parameters for improved quality control.

Q: When is dust collection necessary, and what options are provided?

A: Dust collection is recommended for working in urban or enclosed environments; this batching plant provides either a bag filter or centralized system as optional solutions to manage airborne particles.

Q: How does the aggregate batching system ensure accuracy?

A: The system uses load cell based weighing for aggregates, guaranteeing precise measurement and consistent mix quality, essential for high-standard concrete applications.
